(Click at the pictures to see a real version of the phone).
|
1898

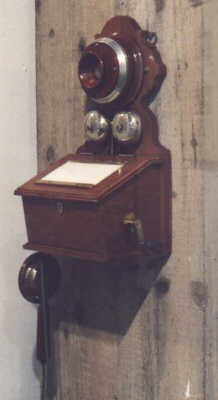

Model M.98p (S&H), first type of walltelephone with desk, 1898
- case of walnut - 1 tin telephone with ringmagnet - carbon-bag microphone by Siemens & Halske - induction coil - magneto calling - polarized ringer - Lightning arrester - local battery working with DC- busy test
|
1899/1900

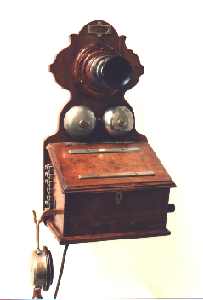

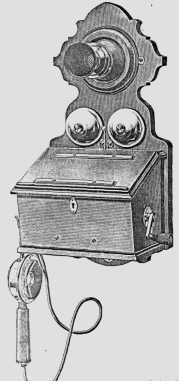

Model M.99p/M.00p, 1899/1900
- case of walnut - 1 telephone M.93 or telephone with ringmagnet M.00 - carbon-granule microphone (Mix & Genest) - induction coil - magneto calling M.98 - polarized ringer M.99 - Lightning arrester (only M.99p) - local battery working with DC- busy test
|
|
|
1903

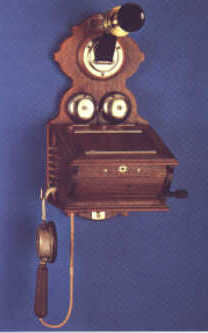

Model Stf.03, first type of walltelephone with microphone adjustable for high, 1903
- case of walnut - 1 telephone with ringmagnet M.00 - carbon-granule microphone - induction coil - magneto calling M.98 - polarized ringer M.03 - local battery working with DC- busy test
|
1904

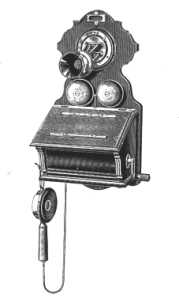

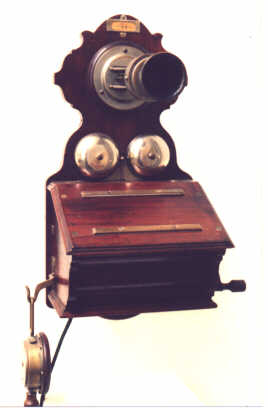

Model Stf.04, 1904
- case of walnut - 1 telephone with ringmagnet M.03 - carbon-granule microphone - induction coil - magneto calling M.04 - polarized ringer M.03 - local battery working with automatic clearing
|
|
|
1904
Model ZB.04, common wall case with desk top as an CB-phone, 1904 - case of walnut - 1 telephone with ringmagnet M.03 - carbon-granule microphone, adjustable for height - induction coil - CB calling - polarized ringer - capacitor
|

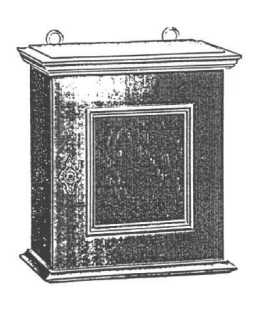

Batterycase
All these telephones needed local batteries for the microphone current (2 cells) (except for the CB-phone). These batteries were housed in little wall cupboards.
|
|
